Radially Oriented Ring Magnets

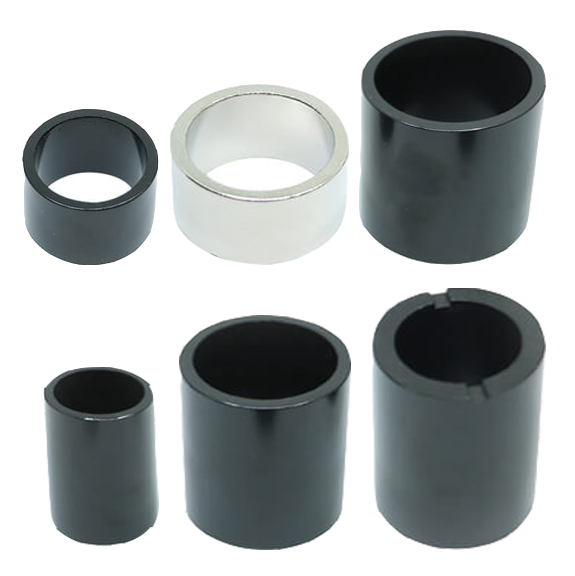

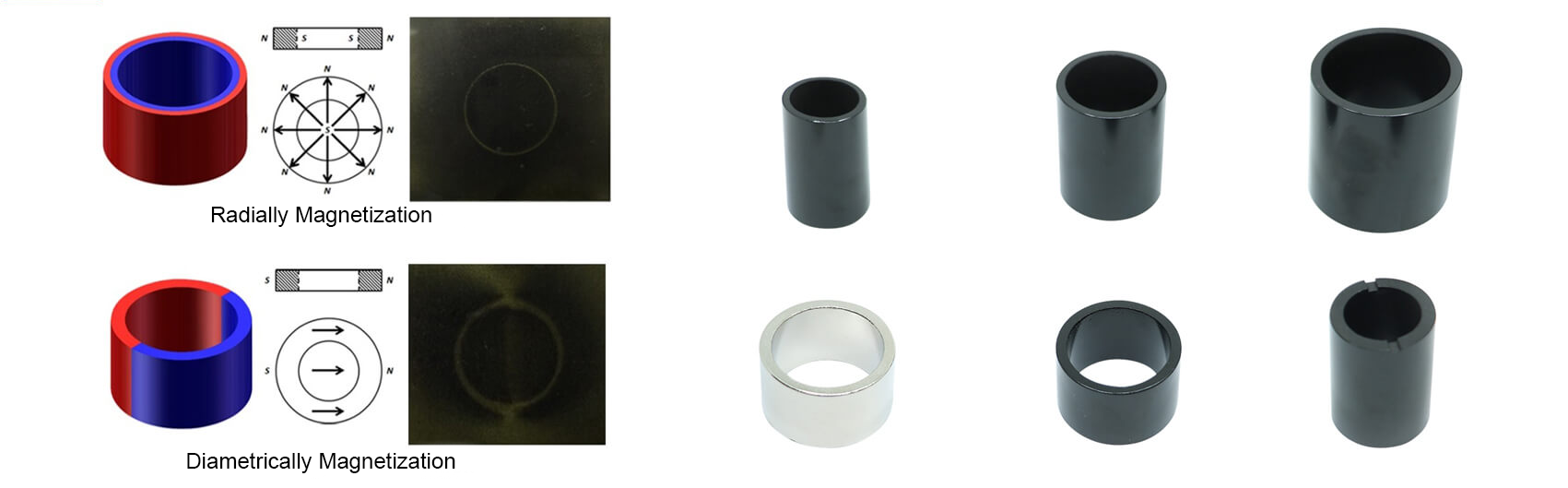

Many magnet users are having a tendency to confuse radially magnetization with diametrically magnetization. As the name implies, the magnetization direction of radially magnetized ring magnet is along its radial vector. For sintered Neodymium magnet, radially magnetization is basing on radially orientation. Radially oriented ring magnet is serving more as the basis to obtain multipole ring magnets.

▲Manufacturing Process of Radially Oriented Ring Magnets

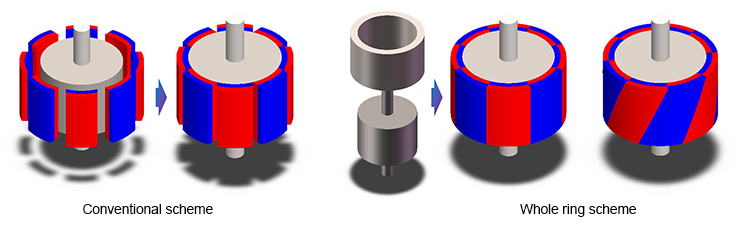

Multipole ring magent is infinitely a preferred path for rotating machinery and magnetic coupling device in comparison with traditional splicing several arc magnets. Radially oriented ring magnet is the most common and mature solution to produce multipole ring magnet, Radial ring magnet can be manufactured by either powder metallurgy process or hot deformation process.

● Powder Metallurgy Process

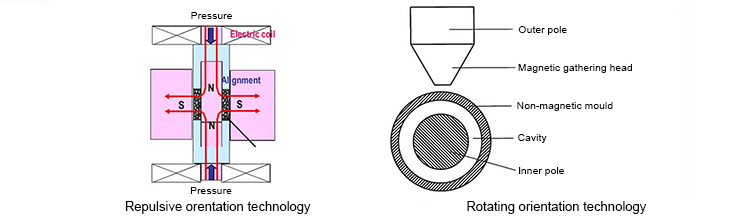

For sintered Neodymium magnet, manufacturers much apply the external magnetic field to order the easy magnetization direction of powder during the molding process and thus make powder consistent with the final magnetization direction. The mainstream generation mode or radially orientation magnetic field includes repulsive orientation technology and Chinese unique rotating orientation technology.

● Hot Deformation Process

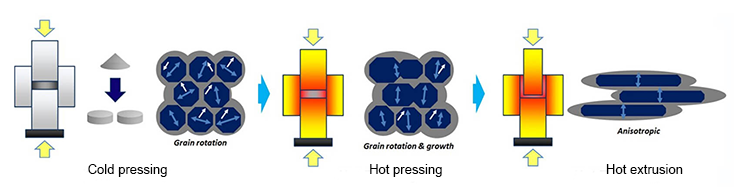

Hot pressed magnet made by hot deformation process is another path to produce radial ring magnet. Nd2Fe14B main phase has tetragonal structure and elastic modulus of the easy magnetization axis is relatively low. For isotropic nanocrystalline Neodymium magnet, its easy magnetization direction will form the preferred orientation along pressure direction during hot deformation process. The most noteworthy feature of hot deformation process is that it does not need the magnetic field to orient powder.

▲ Advantages of Radially Oriented Ring Magnets:

○ Easier for assembly process compared with gluing several segments magnets and thus reduce assembly cost.

Improve utilization rate of raw material.

○ Excellent dimensional accuracy which will substantially enhance dynamic balance of the motor.

○ Highly flexible magnetization patterns, controllable waveform and magnetic field strength which will reduce cogging torque and motor noise.

○ Available for N35-N50, N35M-N50M, N35H-N48H, N35SH-N45SH, N35UH-N40UH, N28EH-N33EH.
